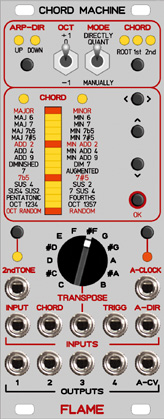

FLAME "CHORD MACHINE"
Euro Rack module

Chord generator/arpeggiator
for 4 real voices !


- 32 chords
- chord positions: root, 1st invers, 2st invers
- Controls: Chords, Transpose (Keynote), Chord 2nd Tone, Arpeggio direction
- 3 modes: directly (no input quantize), quantize, manually (intern settings)
- Arpeggiator mode
- 4x CV outputs CV 1..4 chord
- 1x CV output chord arpeggio
- Trigger inputs chord + arpeggiator
- CV inputs chords
- CV ranges 10 octaves
- CV resolutions 12bit
- software updates possible via usb
- Size: Euro rack module 10HP

- more informations soon...

  (subject to alterations)
  last update: august 27, 2011




FLAME MULTI VCO MODULE
Euro Rack module

Quad oscillator for chords

- 4 DDS based oscillators
- Waveforms: sin, tri, pulse
- PWM, Tune
- 4x CV inputs osc 1-4
- 1x CV input PWM
- 1x CV Tune/Modulation input
- 4x Audio outputs osc 1-4
- 1x Audio output sum osc 1-4

- more informations soon...

  (subject to alterations)
  last update: february 11, 2011
